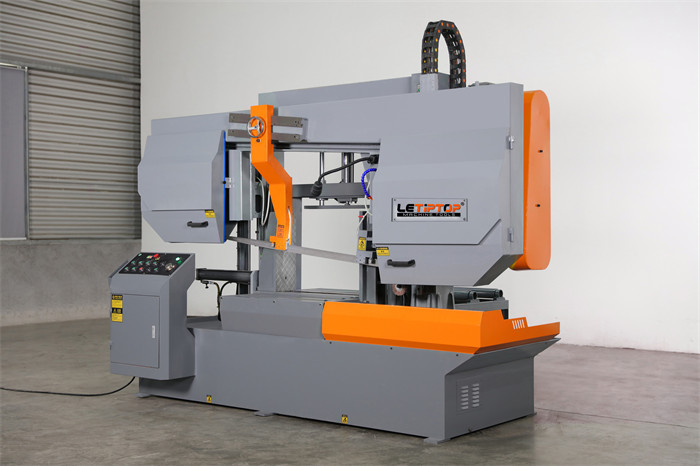

The horizontal metal band saw is mainly used for sawing various metal materials such as alloy structural steel, medium carbon steel, low alloy steel, heat-resistant steel SKT, high alloy steel, special alloy steel and stainless steel, bearing steel, acid resistant steel, straightening steel, etc.


Classification of Horizontal Metal Band Saw:


According to the horizontal structure, it can be divided into double column, single column, and gantry band saw machines;


According to usage, it can be divided into manual type (economical manual feeding and manual cutting of materials) and automatic type;


According to the automation program using the controller, it can be divided into manual type (semi-automatic + manual feeding) and fully automatic type (automatic feeding + automatic cutting);


According to the cutting angle requirements, it can be divided into angle sawing machines (capable of sawing angles of 90 degrees and 45 degrees) and angle free sawing machines (i.e. 90 degrees).

1. Sawing angle adjustment: To cut any angle within a 45 degree angle, first loosen the fixed handle, then turn the saw frame clockwise, align it with the angle scale on the base that you need, and lock the fixed handle.

2. When you adjust the sawing angle, the angle of the small jaw should also be adjusted accordingly. Loosen the fixing screw of the jaw, and then push the small jaw towards the large jaw to make the angle of the small jaw the same as that of the large jaw. After locking the fixing screw, you can proceed.


Saw Blade Selection:

1. The lifespan of the same saw blade is mainly determined by an appropriate cutting depth, which is determined by the size of the saw teeth, cutting speed (saw blade speed), cutting force (saw frame cutting speed), and cutting pressure.

2. Tooth saw size - If the saw blade teeth are too large and the number of teeth is too small, it will make the cutting unstable, and due to the increased cutting load of each saw tooth, it is easy for the saw teeth to pull and break. If the tooth saw is too small, it is easy to cause sawdust blockage and wear and damage shortly after use. When cutting workpieces with good toughness and relatively soft texture, coarse serrated saw belts should be used as much as possible. If a good cutting surface is desired, fine serrated saw belts should be selected.
